Position Object places on both sides of mesh when O only want it on one.
#1

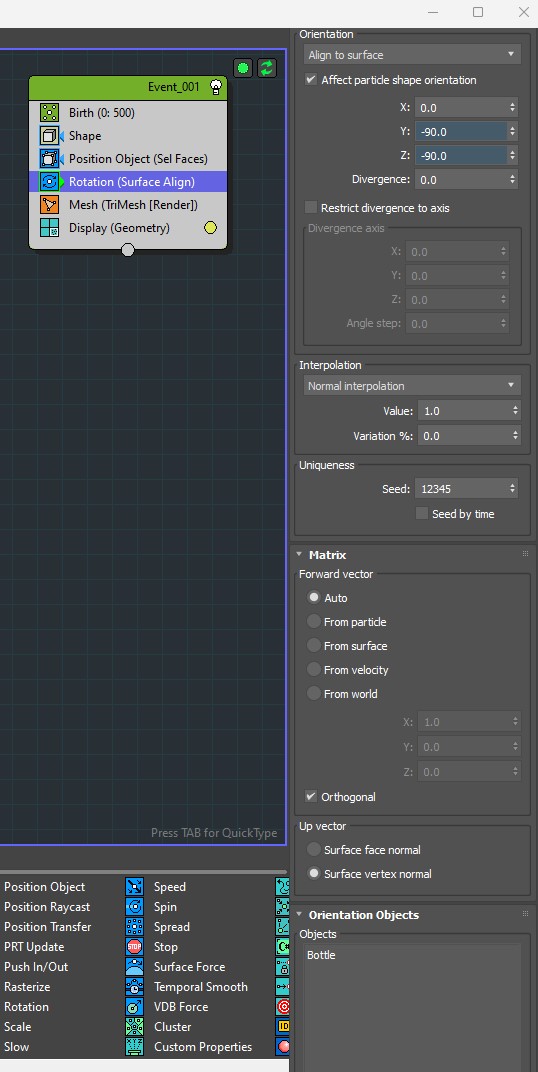

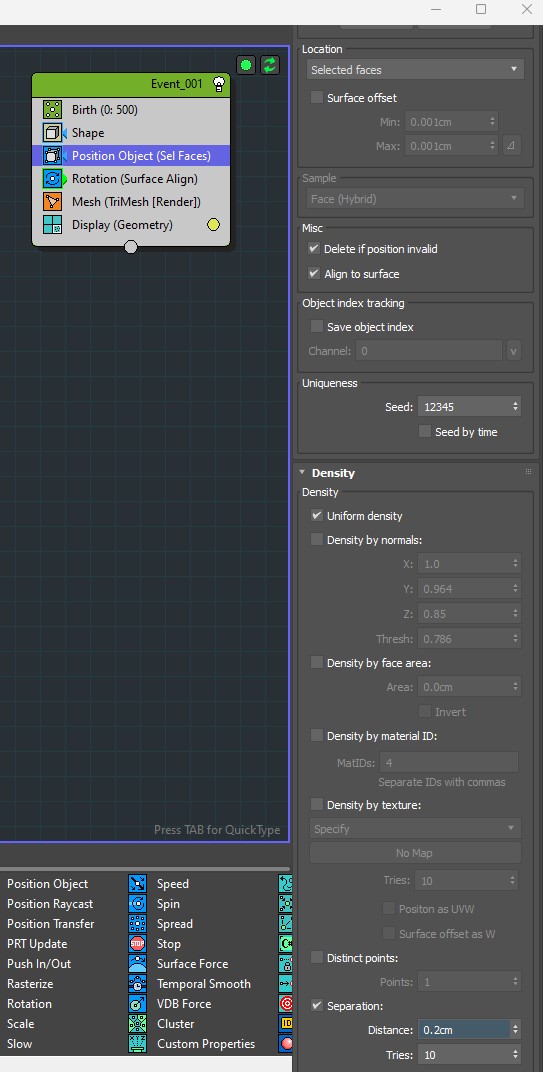

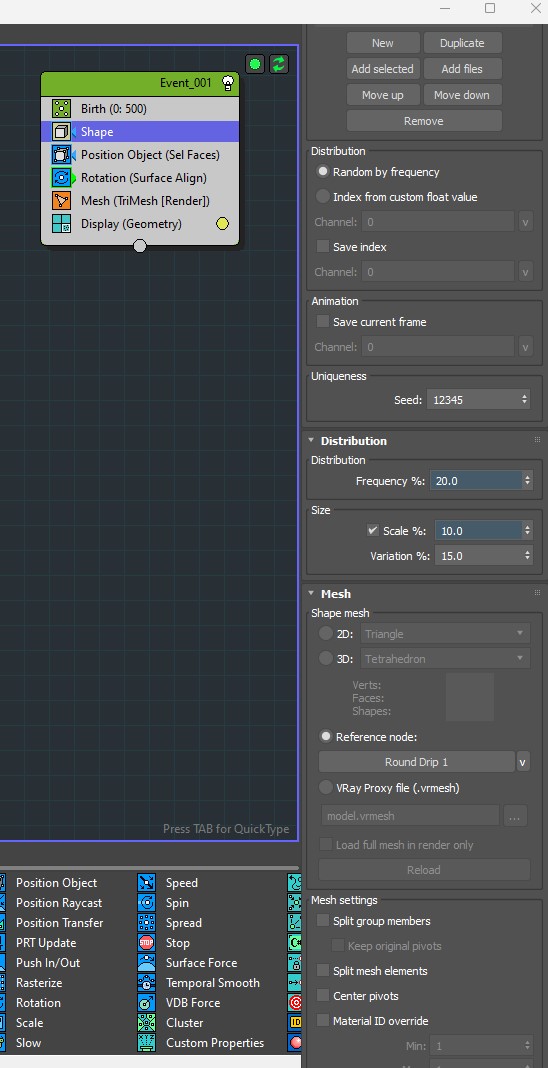

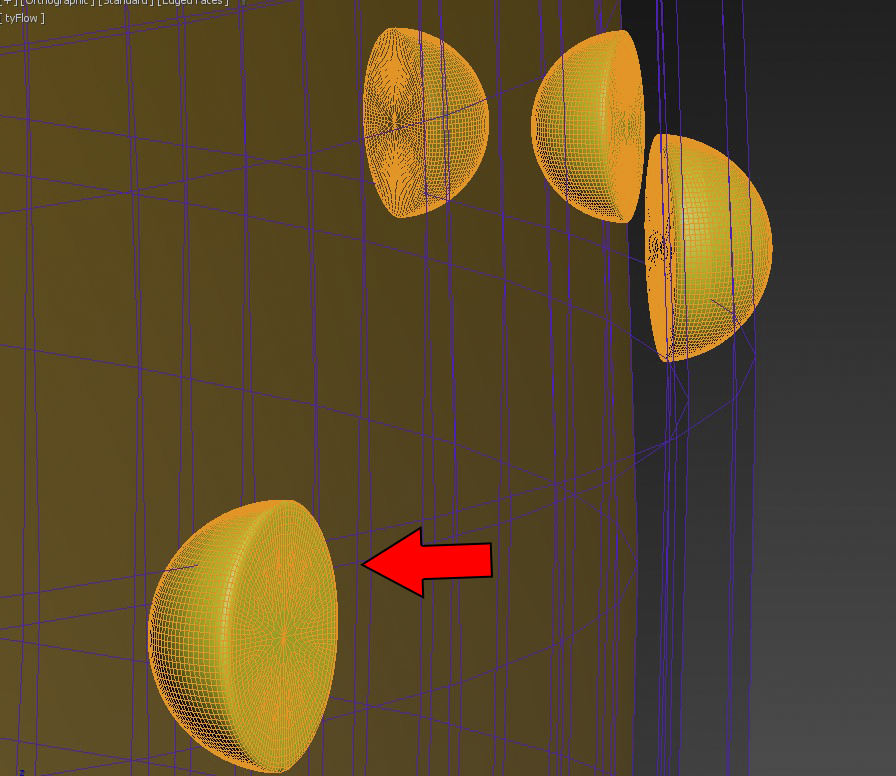

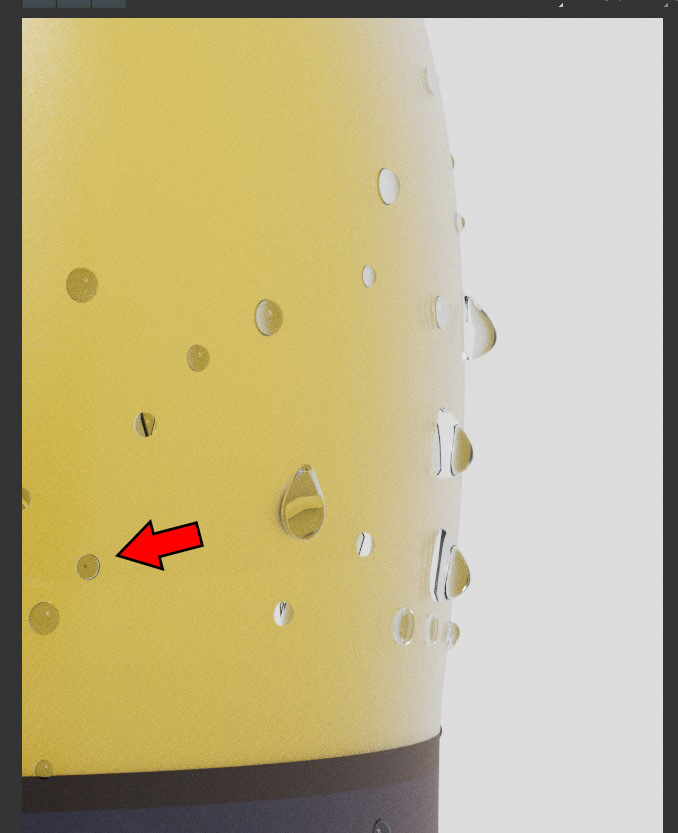

I need some TyFlow help! I am fairly new to this and am trying to place droplets onto a bottle but whenever I use the 'Position Object' node it places the drops on both sides of the mesh causing some show-through (see images). How can I eliminate this and only have the drops places on the outside of the bottles surface? Thanks


Attached Files Thumbnail(s)

  Reply
#2
Based on your screenshot your mesh has 2 sides, so it makes sense that droplets would appear on both.

If you need two sides on your mesh (likely), then make a duplicate mesh with the inside surface deleted and scatter on that instead.
